M60 CRANE TRUCK UNIT 3294

Description

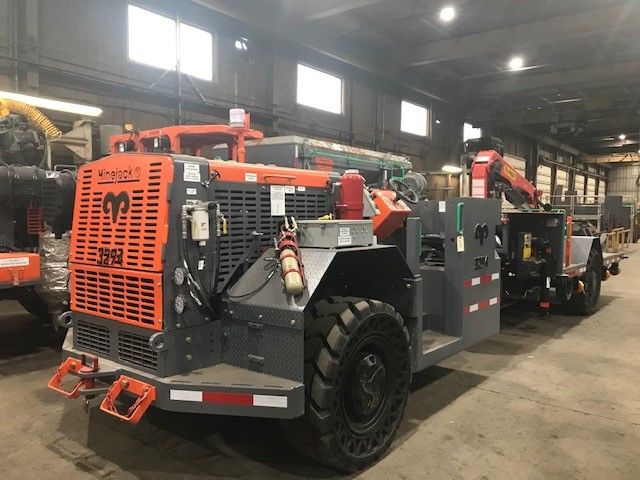

CARRIER
 Reliable Marcotte/Timberland M60 four wheel drive, center articulated original Minejack® carrier
 Side seated mechanical operator and jump seat
 ROPS/FOPS Canopy
 Hydraulic power orbital type steering
 Safe entry / exit with three point contact, front tow bumper, wheel chock brackets
POWERTRAIN
 Cummins QSB6.7 (240 HP) liquid cooled diesel engine
 Clark 32,000 series transmission
 Dana 114 front and rear axles
TIRES & BRAKES
 385/70-20 solid tire and rim assemblies
 Fully hydraulic internal wet disc brake axles with independent front and rear application system
 Push to apply emergency parking brake control button

Spring applied, hydraulic release parking / emergency brakes in both axles
ELECTRICAL, HYDRAULIC AND GAUGES
 24 volt electrical system with fire retardant / self-extinguishing cables
 Unit plumbed with Aeroquip hydraulic hoses and JIC37 degree hydraulic fittings and adapters
 Front and rear brake system pressure gauges
 Engine temperature and pressure warning lights
 Transmission and engine temperature and pressure warning gauges
 Hour meter, volt meter
 Back up alarm and lockable master switch
 Two (2) forward drive lights, two (2) reverse lights, one (1) strobe light
MISCELLANEOUS CARRIER FEATURES
 Donaldson dry type air filter assembly / ECS exhaust purifier and silencer
 Rubber lines fire extinguisher bracket (fire extinguisher not included)
 4 nozzle fire suppression system
 Seat belt interlock (prevents brakes from releasing when seat belt is not engaged)
 CRN Accumulators
 Auxiliary Steer
 Exhaust Blanket
 Marcotte / Timberland standard decal kit

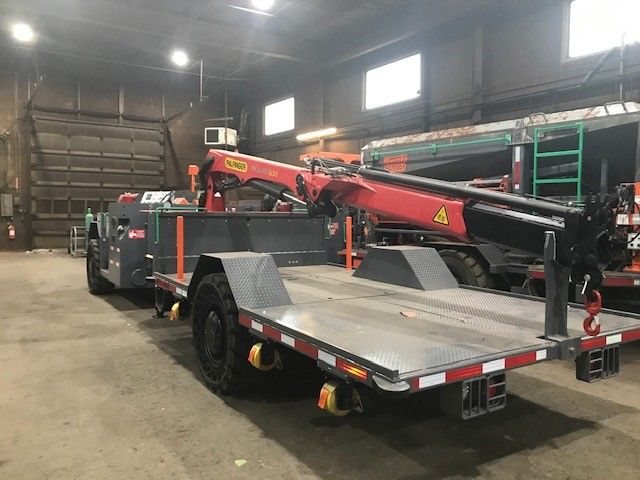

CRANE TRUCK REAR CARRIER FEATURES

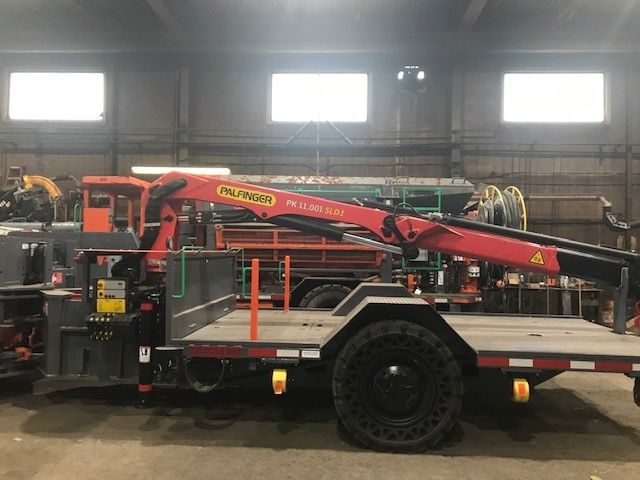

 Palfinger PK11001 crane c/w stabilizer jacks, dual controls, bulkhead guard and extendible outrigger legs
 Interlock to prevent brakes from releasing when outrigger jacks are extended
 Heavy duty 32,000 lbs. capacity 8’ x 12’ deck with wheel wells
 1-1/2” kickplate
 Set of three (3) tie-down straps
MANUALS
 Three (3) hard copy parts and operator manual
 One (1) hard copy service manual
 One (1) electronic USB of parts, operator and service manual
Paint Finish:
Fabricated components will be abrasive blasted to a minimum of SSPC-6, coated with the Timberland Equipment Limited standard paint system.
Quality System & Welding Standards:
All equipment is engineered, designed, manufactured and tested in accordance with our ISO 9001 quality system.
